Door Frames

All Steel’s hollow metal door frames are engineered and manufactured for use in high frequency openings located in commercial, industrial and institutional projects.

Frames

  • 18, 16, 14 and 12 gauge
  • Full face welded or 3 piece knockdown
  • Single back bend or drywall return
  • Mortised, reinforced, drilled and tapped for 4 1/2″ standard template hinge and 4 7/8″ standard strike
  • Strike jambs prepared for 3 door silencers
  • Sound transmission assemblies (STC) available
  • Fire labelled from 3/4 hour to 3 hours

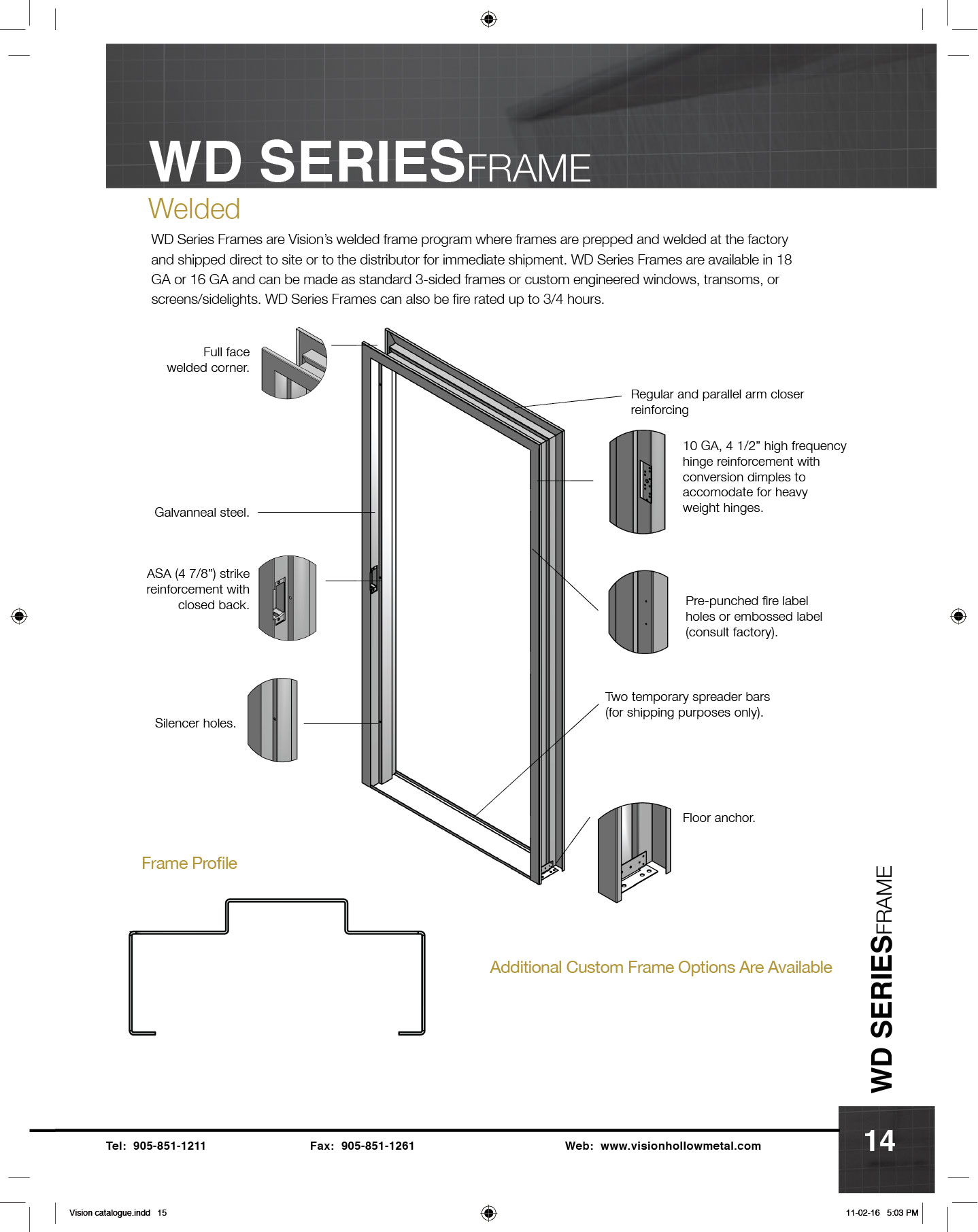

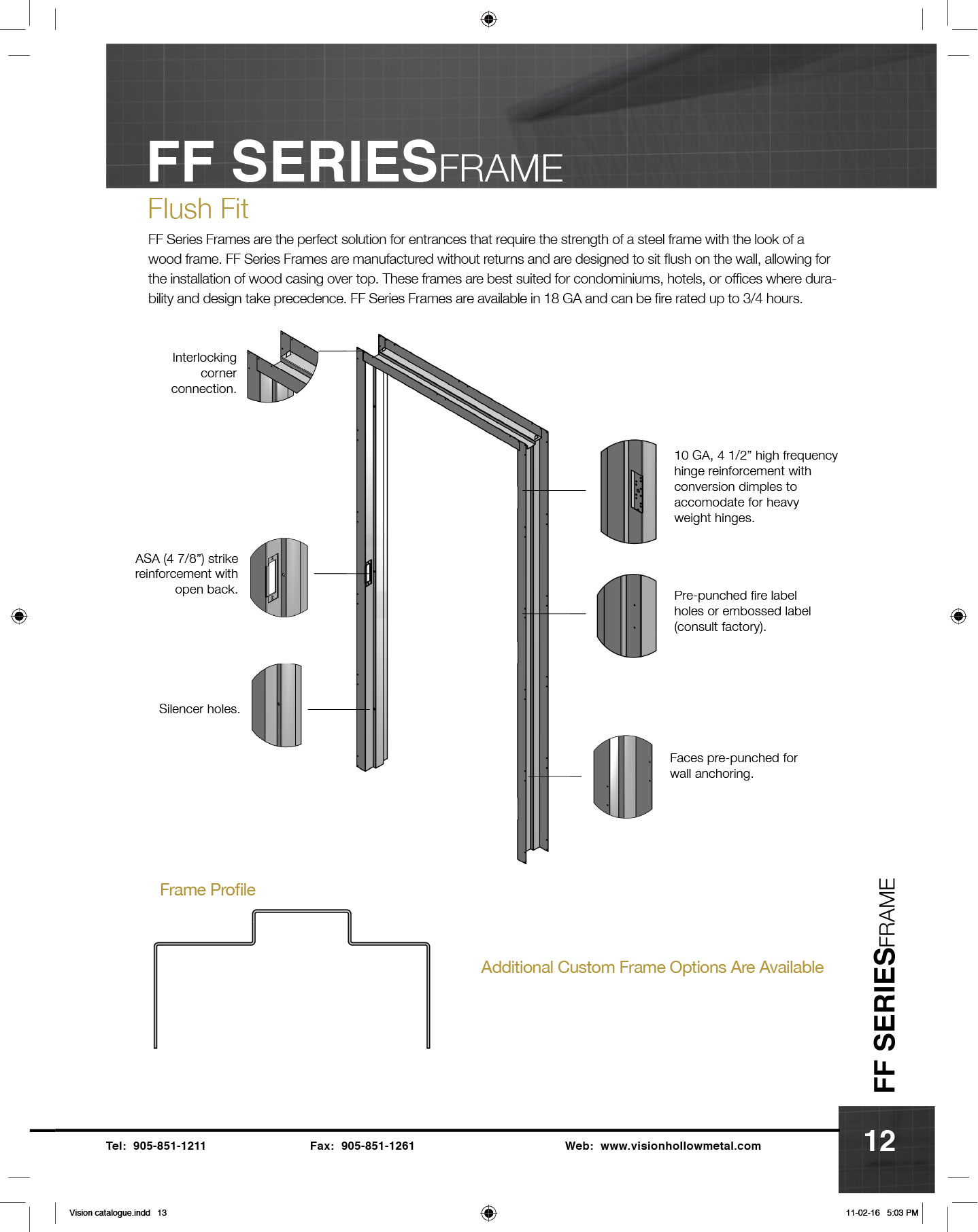

Frame Profiles

Frame Material Specifications

  • Standard coating
    – Hot dipped galvanized steel (Galvanneal) to ASTM A653-B, coating A40 (ZF120), 0.40oz/ft2 (120g/m2)
  • Options available
    – G90 (ZF275)
    – Stainless Steel

Frame Series

  • AS Series – 16 gauge single return Standard Frame for 1-3/4” Doors
  • DW3 Series – 16 or 18 gauge KD Double return Standard Frame for 1-3/4” Doors

Frames



Images courtesy of All Steel Doors
